Dimplex Revillusion RBF36
Revillusion 36" Landscape Electric Fireplace
Revillusion® is a completely new way of looking at fireplaces, and changing the standard for electric. A clear view through the lifelike flames, to the full brick interior, captures the charm of a wood-burning fireplace. Enjoy the look of a fireplace cut straight from the pages of a magazine by choosing Revillusion®; clearly a better fireplace.
36” Revillusion Landscape - Direct-wire Firebox with Revillusion flame technology, Mirage flame panel, ThruView full-depth design, mood lighting and Realogs, 1,440 W/120 V, 1,975 W/208 V, 2,575 W/240 V. Includes multi-function remote control. Optional door kits, glass kits and plug kits sold separately.
Product Dimensions
- H 26 5⁄8 in x W 37 1⁄4 in x D 12 1⁄8 in
- H 67.6 cm x W 94.4 cm x D 30.7 cm
Revillusion® Flame Technology
Flames are larger, brighter and more random, appearing from within the logs.
Mirage™ Flame Panel
Partially frosted acrylic panel is clearly better than a mirror, showing only dazzling flames and no reflections.
ThruView™ Full-depth Design
See clear through the flames to the back of a masonry fireplace for a more authentic experience.
Mood Lighting
Customize the firebox glow with a choice of warm hues, plus midnight mode.
Color Enhancement
Adjust the flame base color to red or blue.
Realogs® Plus
A full grate of life-size hardwood-cast logs, tiered for greater depth.
Full Brick-surround Firebox
More authentic day or night; 270-degree herringbone brick with natural soot markings.
Brightness and Flicker
Adjust light level to suit the room and choose flicker effect for enhanced firelight.
Ambient Light Sensor
Automatically adjusts firebox light to suit the room day to night.
Quick and Easy Installation
Simply frame, wire and finish – no venting, gas lines or safety screens.
Primary Heat
Option to use 240 volt supply for up to 8,800 BTU - use as part of primary heating plan; heater also operates without flame and can be deactivated.
Primary Heat
More authentic day or night; 270-degree herringbone brick with natural soot markings.
Direct-wire
Designed to be direct-wired to a 120, 208 or 240 volt circuit for a seamless look (optional plug kit available).
All-season Flames
Enjoy the unique charm of a fireplace 365 days a year using the flames without the heat.
Low Carbon Footprint
The most sustainable fireplace option; no emissions and 100% efficient.
Log Set Options with Standard Brick Panels

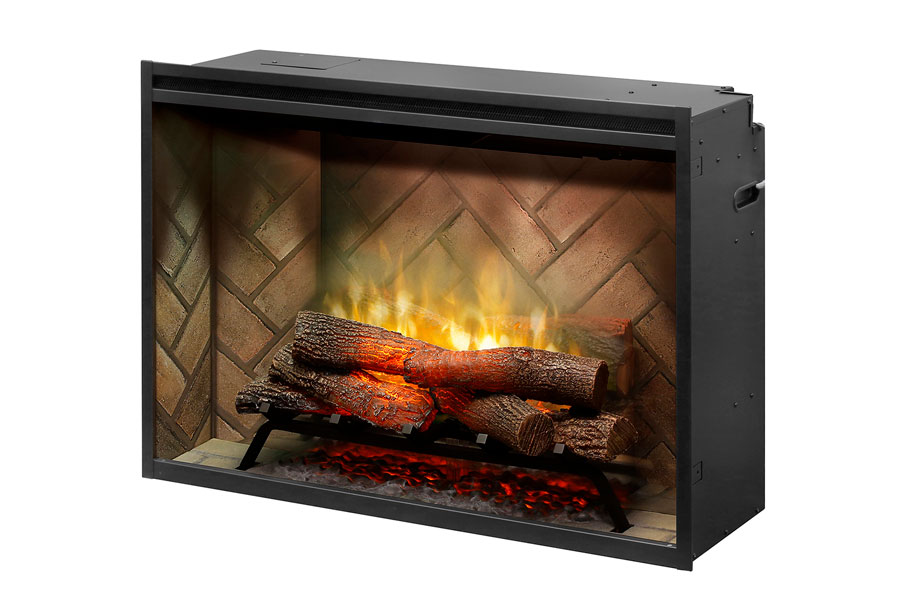

Realogs Log Set (Included)

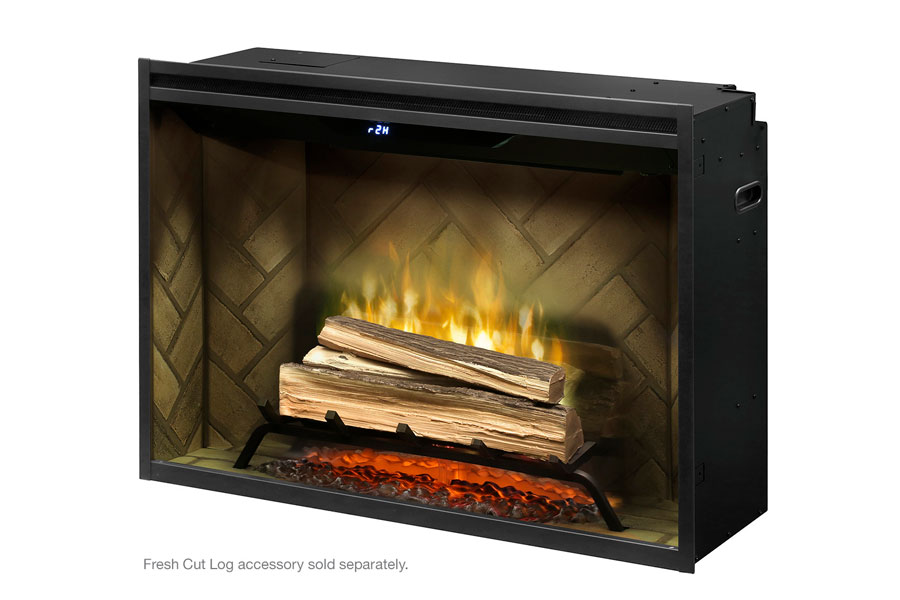

Fresh Cut Log Set (Upgrade)

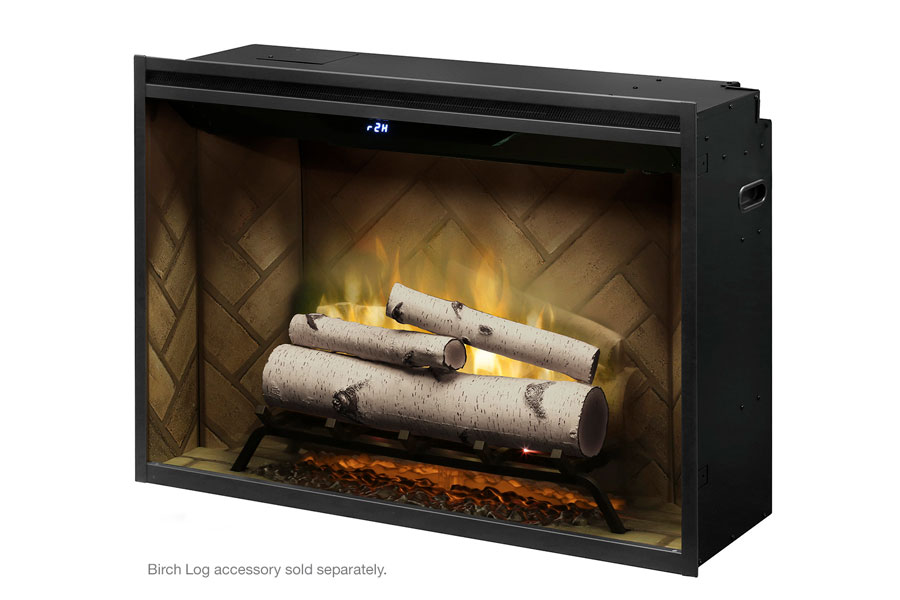

Birch Log Set (Upgrade)

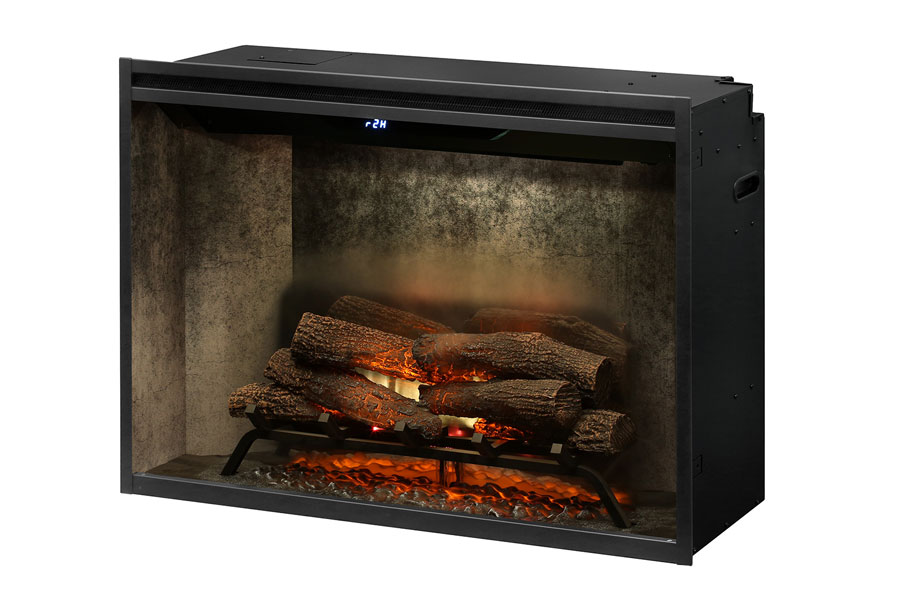

Log Set Options with Weathered Concrete Panels
Realogs Log Set (Included)

Fresh Cut Log Set (Upgrade)

Birch Log Set (Upgrade)

Glass Door & Front Options - Upgrade

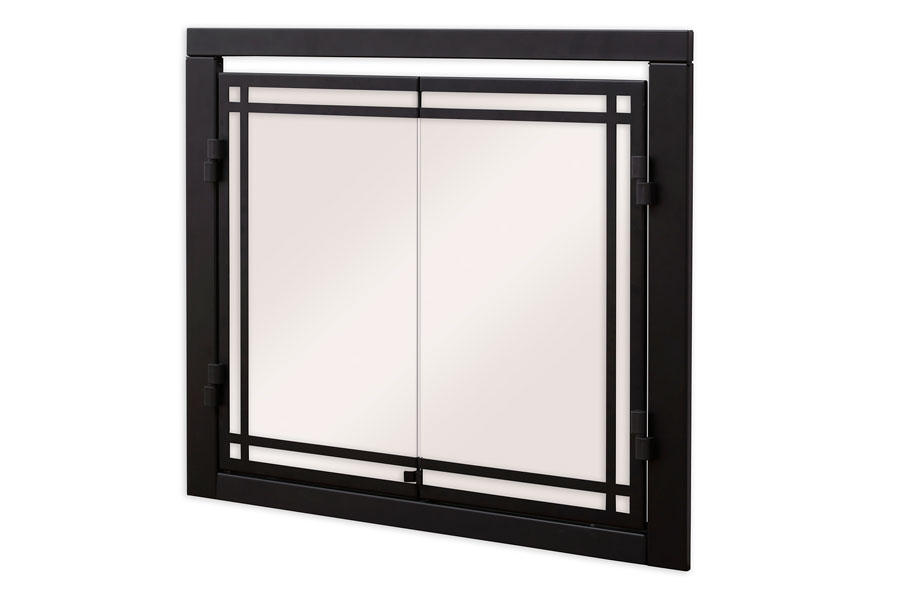

Glass Door - RBFDOOR36

Glass Doors Installed

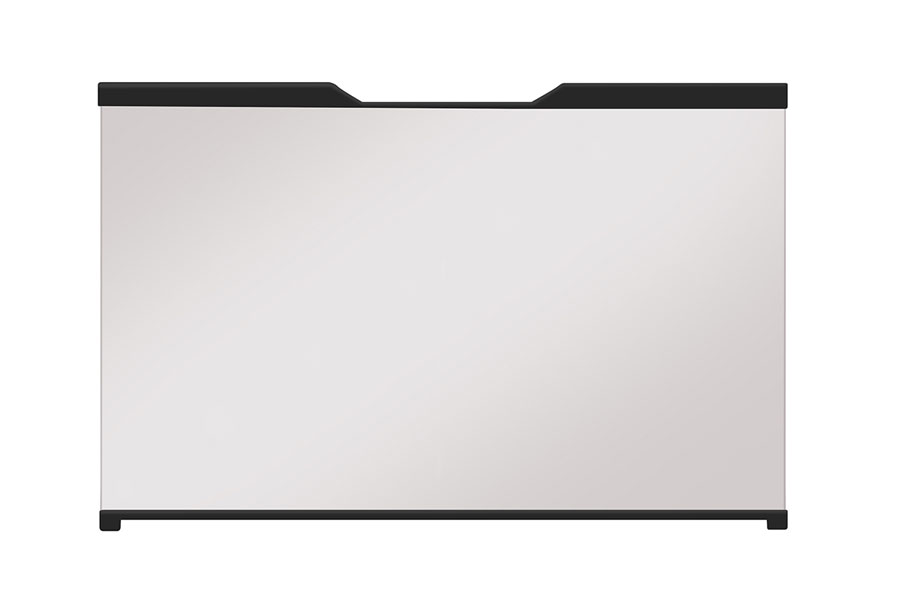

Solid Glass Front - RBFGLASS36

Features:
- Fire Box: Log Set
- Plug-in/Built-in Type: Built-in
- Volts: 120/208/240
- Wattage: 1300/1975/2575
- Amps: 10.8/9.5/10.7
- BTUs: 4400/6745/8794
- Remote: Mood Maker Remote
Owners Manuals & Spec Sheets
Owners Manuals
Owners Manuals & Spec Sheets
Owners Manuals


Additional Product Specifications
Shape: Square
Size: 36"
